- MRCOOL DIY 36,000 BTU 4-Zone Ductless Mini-Split Air Conditioner and Heat Pump Condenser, DIY-MULTI4-36HP230
- MRCOOL DIY 12,000 BTU Ductless Mini-Split Wall Mounted Air Handler, DIY-12-HP-WMAH-230B (x2)
- MRCOOL DIY 24,000 BTU Ductless Mini-Split Wall Mounted Air Handler, DIY-24-HP-WMAH-230B
- MRCOOL 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, DIY25-1412 (x3)
- MrCool 25ft 3/8 x 5/8 Lineset for DIY 24K & 36K Indoor, DIY25-38
- MRCOOL DIYCOUPLER-14 + DIYCOUPLER-12 w/50 ft of Communication Wire, DIYCOUPLER-1412K50
Condenser
- This sturdy unit allows you to connect up to four DIY air handlers to it using pre-charged DIY line sets in order to cover as much space as possible in your home with clean, efficient, and comforting air.
- This condenser possesses an impressive temperature range, as it can provide you comfort from -13° to 122°F.
- You'll also be able to enjoy the peace of mind from a 5 year parts warranty and a 7 year compressor warranty when you register your unit online.
Air Handler, 12K BTU, Quantity 2
-

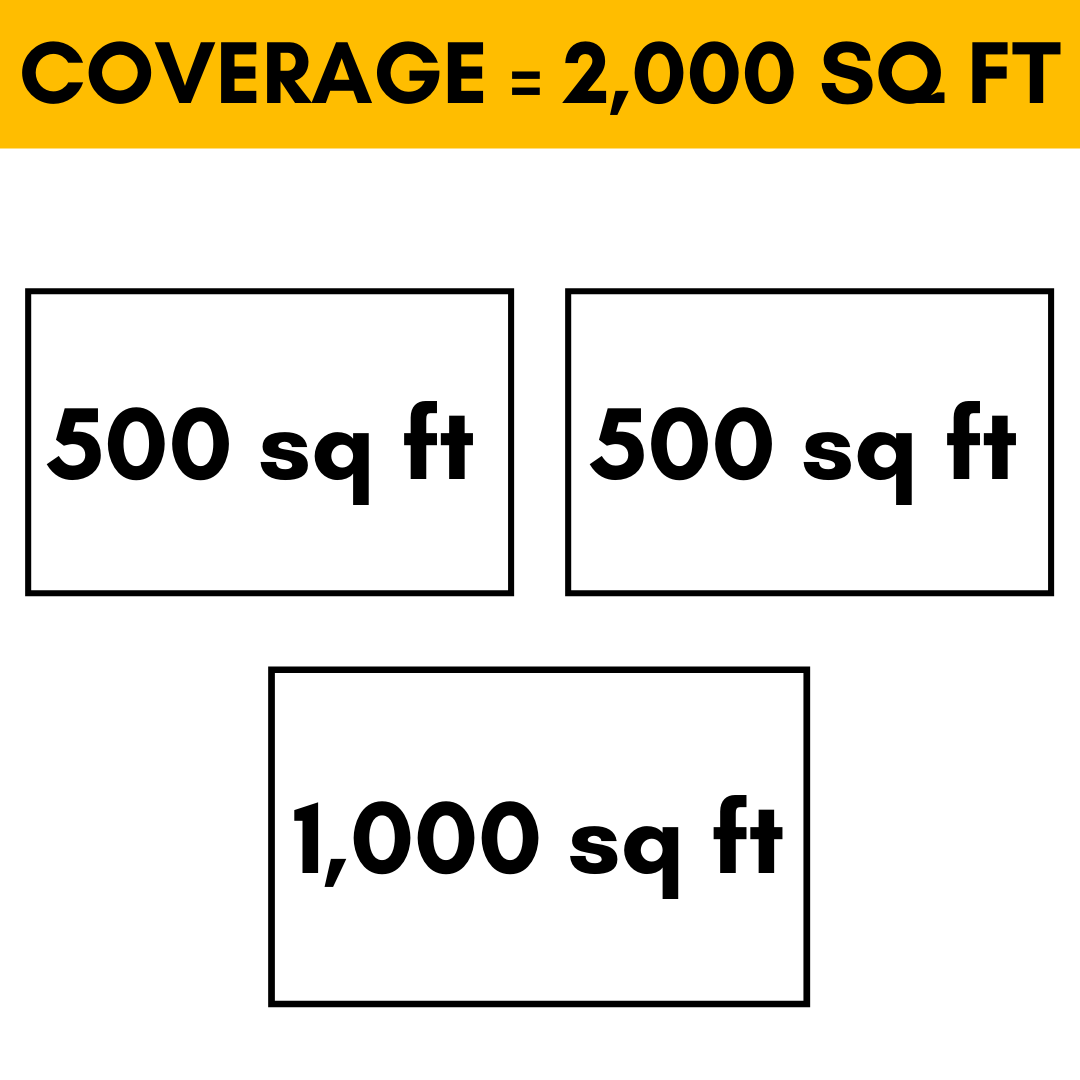

This unit can cover around 500 square feet, making it perfect for cooling a room in your home to your exact specifications
- Just choose the best location to mount it, then connect it to the condenser using the DIY's pre-charged line sets.
- This air handler comes with a Smart HVAC Controller, which allows you to link the air handler to your phone so you can enjoy better control
- Rest and relaxation headed your way thanks to modes like AUTO, DRYING, SLEEP, and many others.
Air Handler, 24K BTU, Quantity 1
-
This unit can cover around 1,000 square feet, making it perfect for cooling a room in your home to your exact specifications
- Just choose the best location to mount it, then connect it to the condenser using the DIY's pre-charged line sets.
- This air handler comes with a Smart HVAC Controller, which allows you to link the air handler to your phone so you can enjoy better control
- Rest and relaxation headed your way thanks to modes like AUTO, DRYING, SLEEP, and many others.
Line Set 25 ft. for the 12K Handler, Quantity 3
-

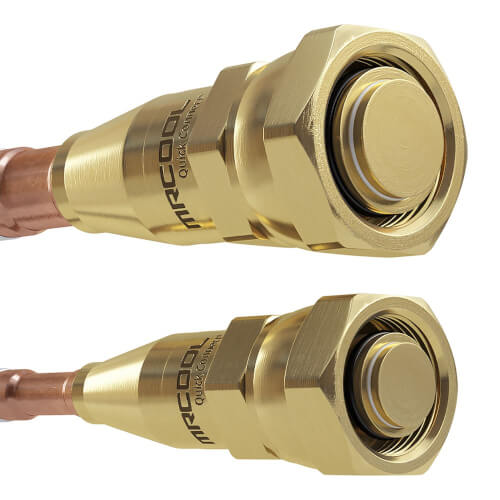

This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
Line Set 25 ft. for the 24K Handler, Quantity 1
-
This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
Coupler, Quantity 1
-
Use this DIYCOUPLER if you have a 9K, 12K or 18K Air Handler. This also comes with 50ft of Communication Wire.
This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate fixing screws, Remote control, Fixing screw for remote controller holder ST2.9 x 10, Remote control holder, Air freshening filter, Seal, Allen wrench, Drain joint, Neoprene, Line-Set Adapter Set (Included with 4-zone only),Dry battery AAA.LR03, Magnetic Ring, Plastic Wall Sleeve, Owner & Installation Manual, Remote Control Manual, Smart Controller Kit, Sound deadening pads, Drain pipe, Cardboard Mounting Plate Template, Quick Connect line set (refrigerant pipe), Insulation material, Non-Adhesive U.V. Tape. Coupler kits available to extend line Set length.
PRODUCT SPECIFICATIONS:
Condenser Specifications
Product Dimensions | 37.24"W x 16.14"D x 31.89"H |
Cooling Capacity |
36,000 BTU |
Heating Capacity | 36,000 BTU |
Zone Capacity | 4 |
Ambient Temperature | -13° to 122°F |
SEER | 21.5 |
EER | 10.5 |
Electrical Requirements | Requires a minimum of 208V-230V/60HZ/ 30A (please check your home meets this electrical requirement prior to purchase) |
Air Handler 12K BTU
Product Dimensions | 31.57"W x 7.44"D x 11.69"H |
Mount Type | Wall |
Cooling Capacity | 12,000 BTU |
Heating Capacity | 12,000 BTU |
Modes | Quiet Mode Fan Only Auto Cool |
Decibel | 31/37.5/45 dBA |
Electrical Requirements | Requires a minimum of 208V-230V/60HZ/15A (please check your home meets this electrical requirement prior to purchase) |
Air Handler 24K BTU
Product Dimensions | 42.52"W x 8.9"D x 13.19"H |
Mount Type | Wall |
Cooling Capacity | 24,000 BTU |
Heating Capacity | 24,000 BTU |
Modes | Quiet Mode Fan Only Auto Cool |
Decibel | 35/45/52 dBA |
Electrical Requirements | Requires a minimum of 208V-230V/60HZ/15A (please check your home meets this electrical requirement prior to purchase) |
Line Set
Length | 25 feet |
Liquid Line Size | 1/4" |
Suction Line Size | 1/2" |
Line Set
Length | 25 feet |
Liquid Line Size | 3/8" |
Suction Line Size | 5/8" |
Coupler
Dimensions | 11"W x 22.5"D x 4.5"H |
Weight | 6.39 lbs |
