- MRCOOL DIY Multi Zone 5-Zone Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
- MRCOOL E Star DIY 4th Gen 18k BTU Ductless Mini-Split Air Handler, DIY-18-HP-WMAH-230C25
- MRCOOL E Star DIY 4th Gen 24k BTU Ductless Mini-Split Air Handler, DIY-24-HP-WMAH-230C25
- MRCOOL DIY 35ft 3/8 x 5/8 Lineset for DIY 24K, 36K Indoor, 4th Generation, DIY35-3858C
- MRCOOL DIY 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C
Condenser
- Energy Efficient. This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
- Works In All Environments. The ability to heat even when temperatures drop to 5°F.
- Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register your product to get the lifetime warranty!
Air Handler, 18K BTU, Quantity 1
- Large Coverage Area. Handler covers an area up to 750 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler, 24K BTU, Quantity 1
- Large Coverage Area. Handler covers an area up to 1,000 sq. ft.
- Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

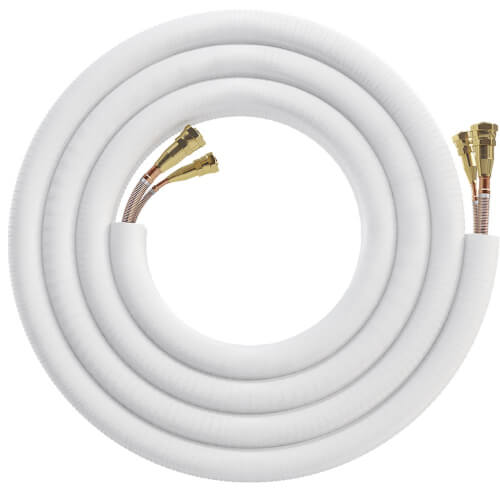

Line Set 35 ft., Quantity 2
- This 35 ft. copper line set connects the 4th Generation MRCOOL Condenser to the MR COOL Air Handlers - 9K, 12K and 18K.

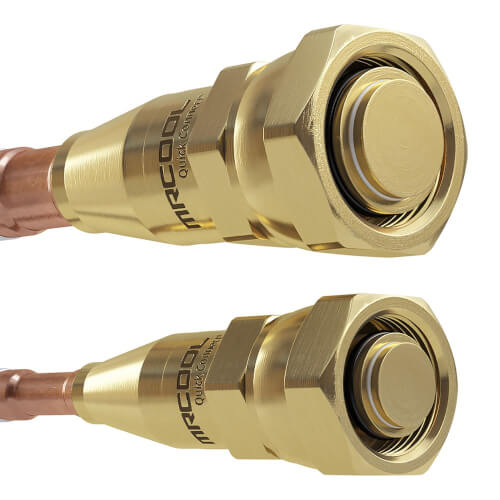

- Pre-Charged. These line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money. This means the installation process can be performed without retaining the services of a certified technician - thus saving you money!
Additional Line Sets & Coupler
If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.
What does this package include?
This package also includes installation friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat, MRCOOL Mini-Stat User Manual, Magnetic Ring, Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect® Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.
PRODUCT SPECIFICATIONS:
Condenser Specifications
| Product Dimensions | 37.48"W x 16.34"D x 52.48"H |
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| Zone Capacity | 5 |
| Min Ambient Cool | 5F ~ 122F |
| Min Ambient Heat | 5F ~ 75.2F |
| SEER | 20.5 |
| EER | 11 |
| Voltage | Requires a minimum of 208V-230V/60HZ/40-6-60A (please check your home meets this electrical requirement prior to purchase) |
Air Handler 18K BTU
| Product Dimensions | 42.52"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity |
18,000 BTU |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Air Handler 24K BTU
| Product Dimensions | 42.52"W x 8.90"D x 13.19"H |
| Mount Type | Wall |
| Cooling Capacity | 23,000 BTU |
| Heating Capacity |
25,000 BTU |
| Modes | Auto - auto selects from Cool, Heat or Fan-Only Dry - dehumidify Cool Heat Fan Only Quiet Sleep |
Line Set
| Length | 35 Feet |
| Liquid Line Size |
3/8" |
| Suction Line Size | 5/8" |
Line Set
| Length | 35 Feet |
| Liquid Line Size | 1/4" |
| Suction Line Size | 1/2" |
| Shipping | This item ships to |
| Delivery | Estimated between and . Will usually ship within 1 business day. |
